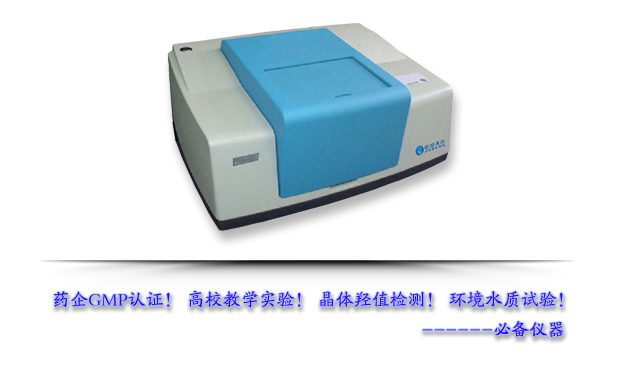

FTIR-1500 Fourier Transform Infrared Spectrometer

产品详情

FTIR-1500 is a cost-effective Fourier transform infrared spectrometer carefully and independently developed by JOSVOK (Tianjin) Technology Development Co., Ltd

Simple and easy to maintain, it can be widely used in many fields such as biomedicine, material science, petrochemical, food safety, environmental protection, etc. It is an indispensable spectral analyzer for production and scientific research.

Analysis instrument.




The FTIR-1500 Fourier Transform Infrared Spectrometer uses the working principle of interferometer interference frequency modulation to convert the light emitted by the light source into interference light through the Michelson interferometer, and then let the interference light

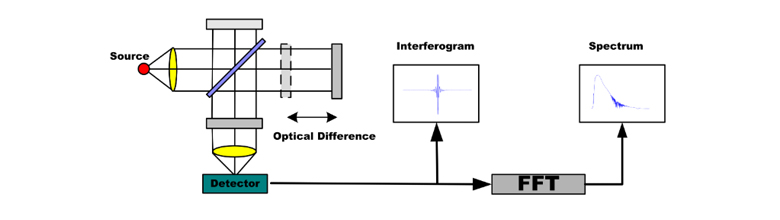

The light irradiates the sample, the receiver receives the interference light with the sample information, and then the computer software can obtain the spectrogram of the sample through Fourier transform. The schematic diagram is as follows:


Intelligent operating software

 Intelligent human-computer interaction design, whether you have contacted with Fourier infrared software or not, you can quickly and proficiently operate;

 The optional laser frequency correction mode can meet both national standards and metrology specifications;

 Unique data collection and preview whole-process monitoring mode, the collection process can be seen at a glance;

 With a variety of professional infrared spectrum libraries, in addition to satisfying routine retrieval, users can customize new spectrum libraries, and can add and maintain them by themselves. The library includes: National Pharmacopoeia Library, National Animal

Pharmacopoeia spectrum library, rubber spectrum library, gas spectrum library, polymer spectrum library, protein and amino acid spectrum library, judicial spectrum library (dangerous goods, chemicals, drugs, etc.), inorganic substances

Spectrum library, organic matter spectrum library, solvent spectrum library, food additive spectrum library, flavor and fragrance spectrum library, paint spectrum library, etc.

Reliable Optical System

 Reliable sealed interferometer design, using a beam splitter with a moisture-proof film and a reusable desiccant box with a large capacity, to achieve 5 times the moisture-proof ability of similar products. Visual discoloration window, easy to observe and replace molecular sieve.

 Some optical components are processed by high-precision diamond lathes, and the system has extremely high consistency and stability;

 No need to adjust for needle positioning and installation;

High stability

 The interferometer adopts imported gold-plated corner mirror, which has extremely high reflectivity and angular accuracy;

 Using high-performance long-life ceramic light source, the luminous efficiency is as high as 80%;

 Imported DLATGS receiver with high sensitivity;

Humanized design

 Large sample compartment design, easy to expand various infrared accessories;

 The design of the push-pull sample compartment door greatly reduces the interference of the outside air on the experiment;

 The instrument design is compact, small and light;

 Modular design, easy maintenance;



FTIR-1500 Fourier Transform Infrared Spectrometer
